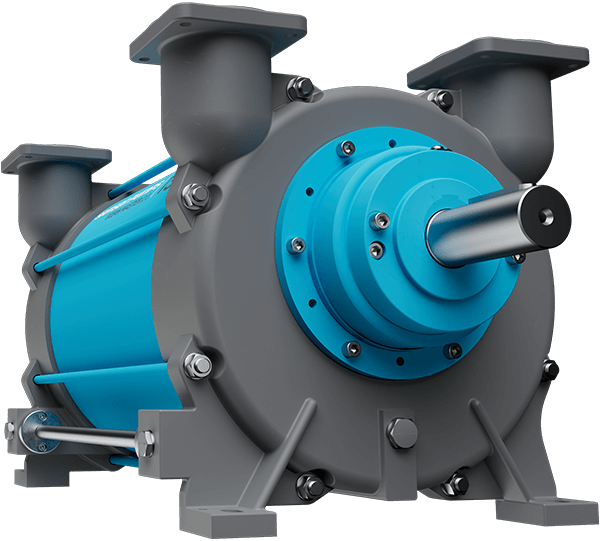

Ocean Master 1500
Ocean Master 1500是我们目前在渔业中的一项产品。该泵的容量为 1500 m3/h。
主要应用：
- 渔船捕捞
- 陆上鱼类加工
Generation: 2.0：
- 第二代高强度转子
- 集成水系统
- 终身润滑轴承
- 易于排水
- 不锈钢流板

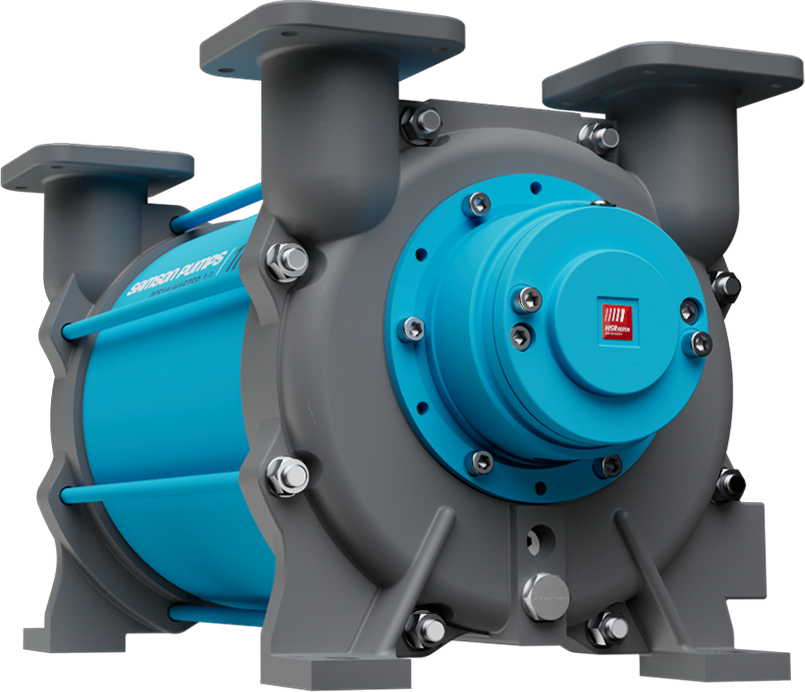

Ocean Master 1500 G 2.0
Specifications
| Part | Material | Specification EU | Specification US |
| Bearing cover | Cast Iron | EN-GJL-250; EN 1561 | 250/275-35-35B 40-40B |
| Radial shaft seal | Rubber | DIN 3760A | DIN 3760A |
| Paper gasket | Paper | Oil resistant gasket | Oil resistant gasket |
| Bearing housing | Cast Iron | EN-GJL-250; EN 1561 | 250/275-35-35B 40-40B |
| Mechanical shaft seal | Rubber / Stainless Steel/ Silicium / Carbon | NBR / 1.4401 / SiC / C | NBR / 1.4401 / SiC / C |
| Pump Housing | Cast Iron | EN-GJL-250; EN 1561 | 250/275-35-35B 40-40B |
| Flow Plates | Stainless Steal | 1.4401 | AISI 316 |
| Rubber gasket | Rubber | NBR | NBR |
| Shell option 1 | Cast Iron | EN-GJL-250; EN 1561 | 250/275-35-35B 40-40B |
| Shell option 2 | Stainless steel | 1.4401 | AISI 316 |
| Stay Bolt | Carbon steel | – | – |
| Rotor | Stainless steel | HSR 2nd Generation | HSR 2nd Generation |
备件列表

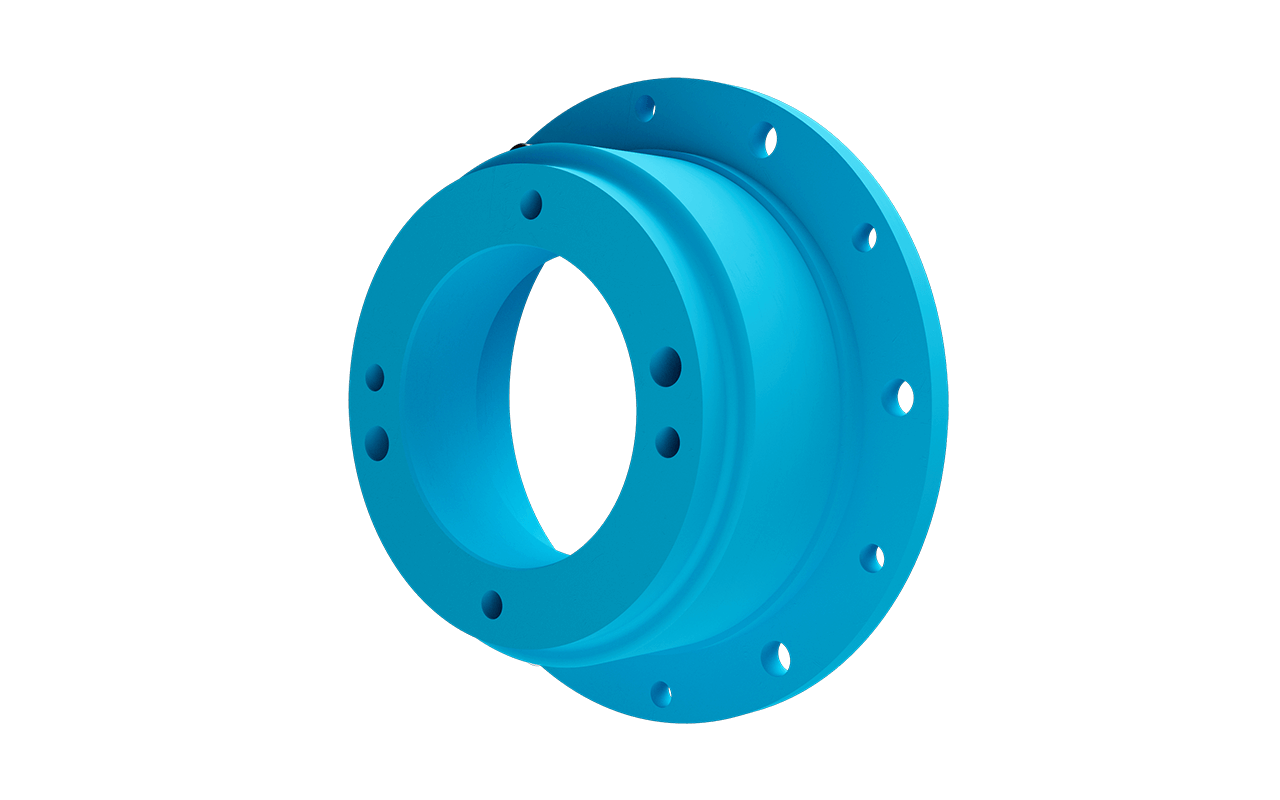

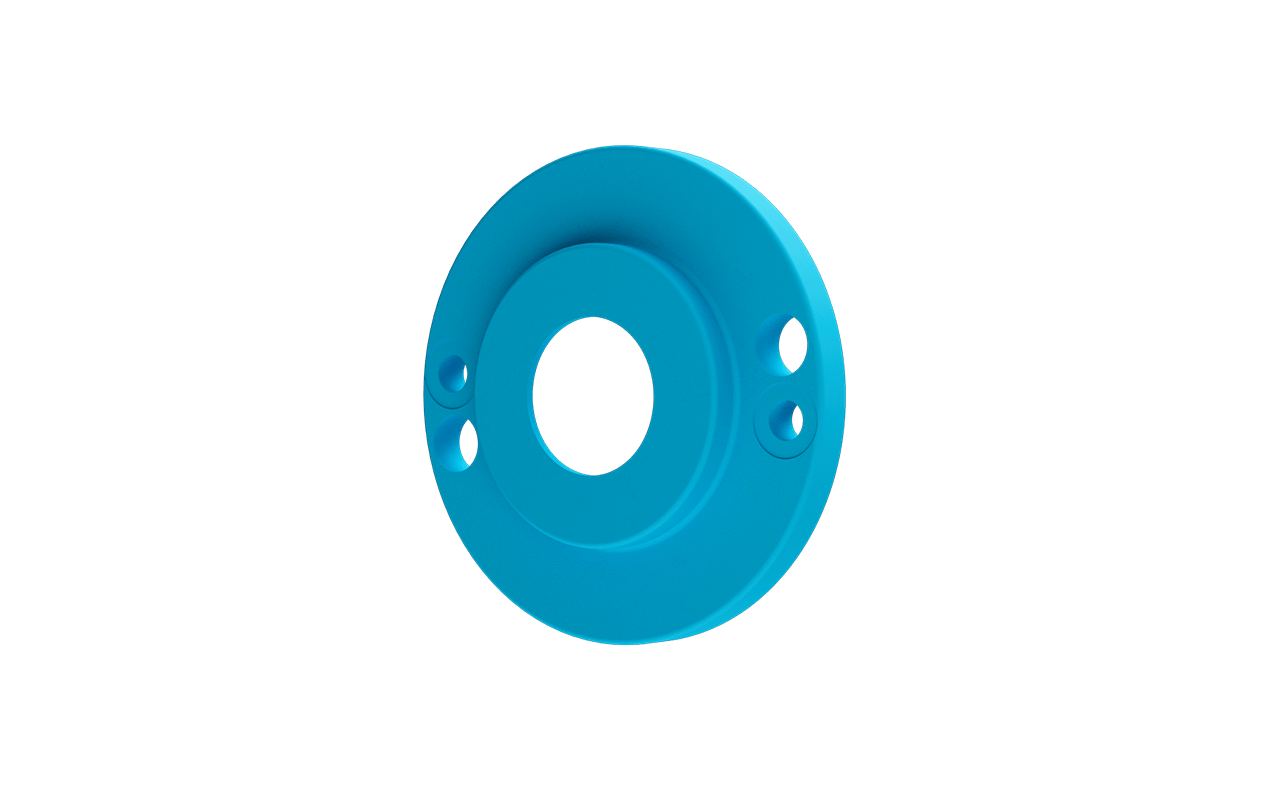

Bearing cover
Drive end
Item no.: 1620182

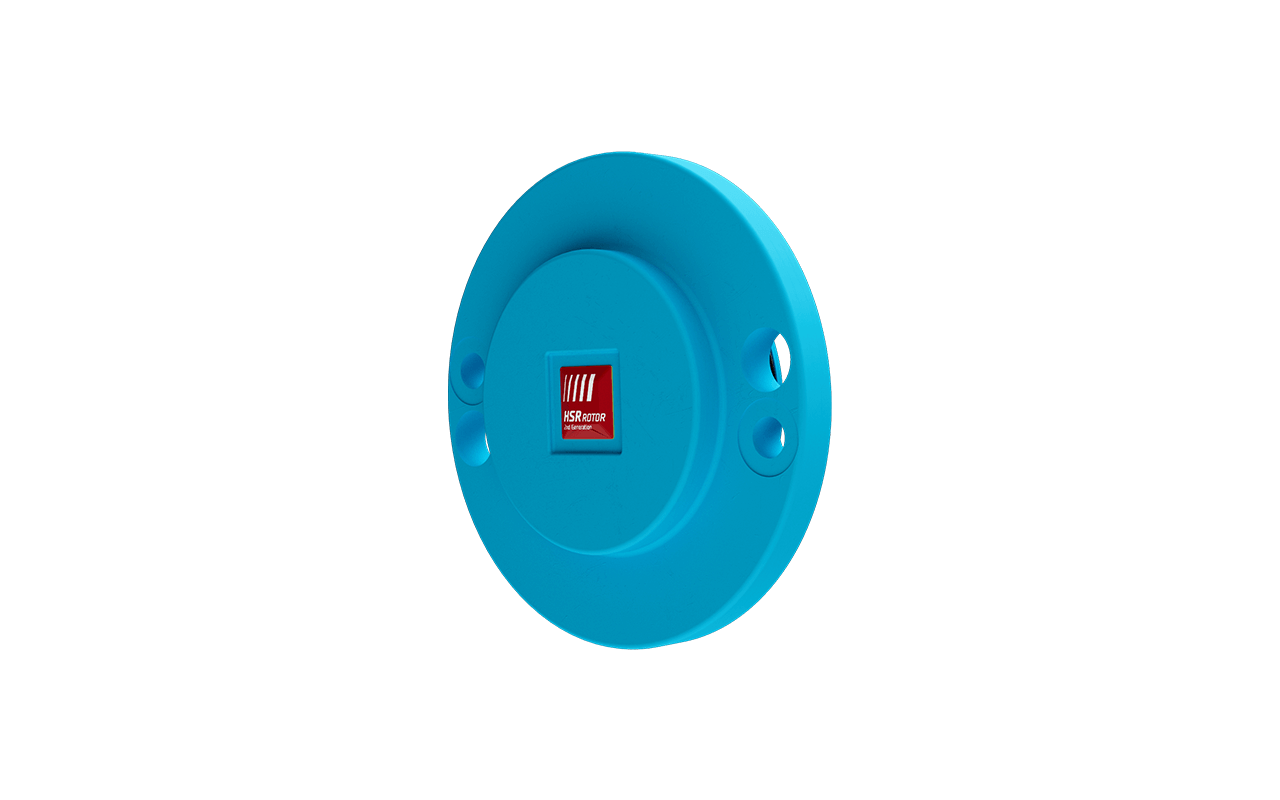

Bearing cover
Non-drive end
Item no.: 1620181
Bearing house
Drive end
Item no.: 1620179
Bearing house
Non-drive end
Item no.: 1620179

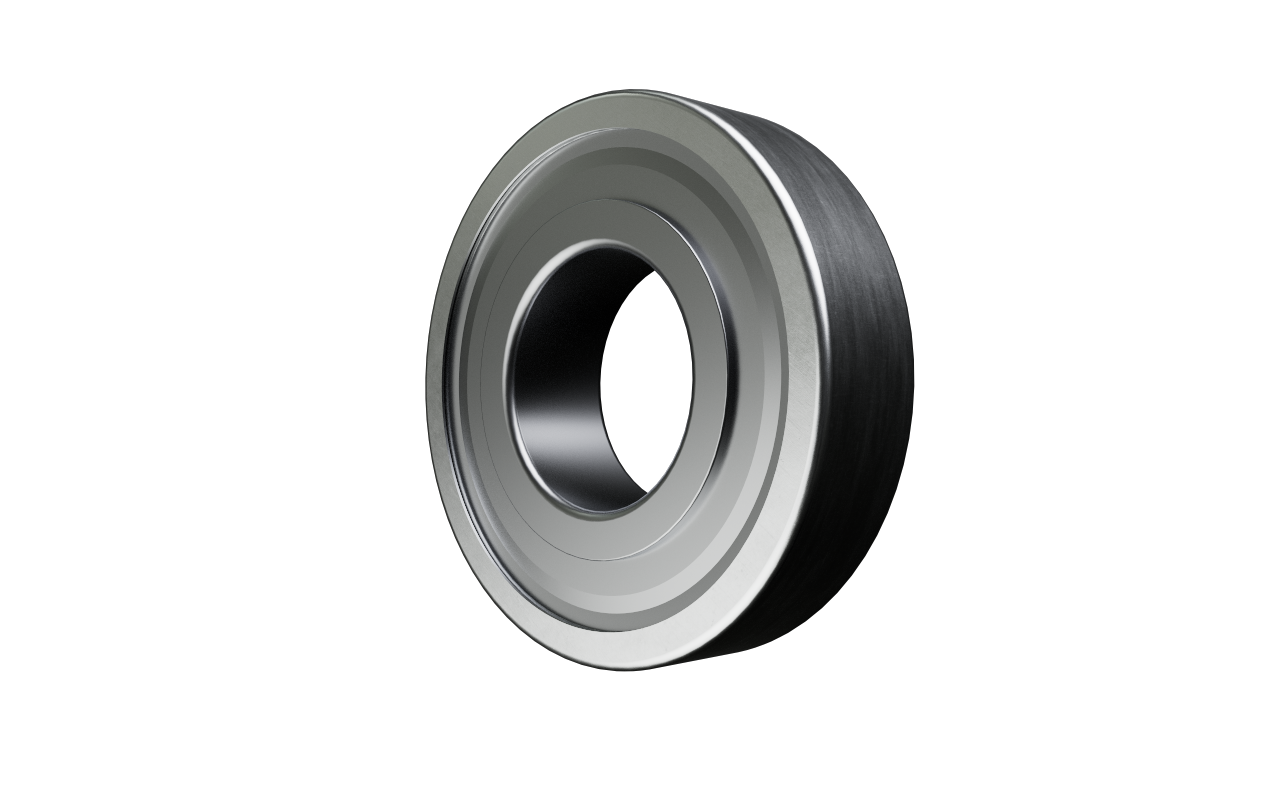

Bearing
Drive end
Item no.: 930000324
Bearing
Non-drive end
Item no.: 930000324

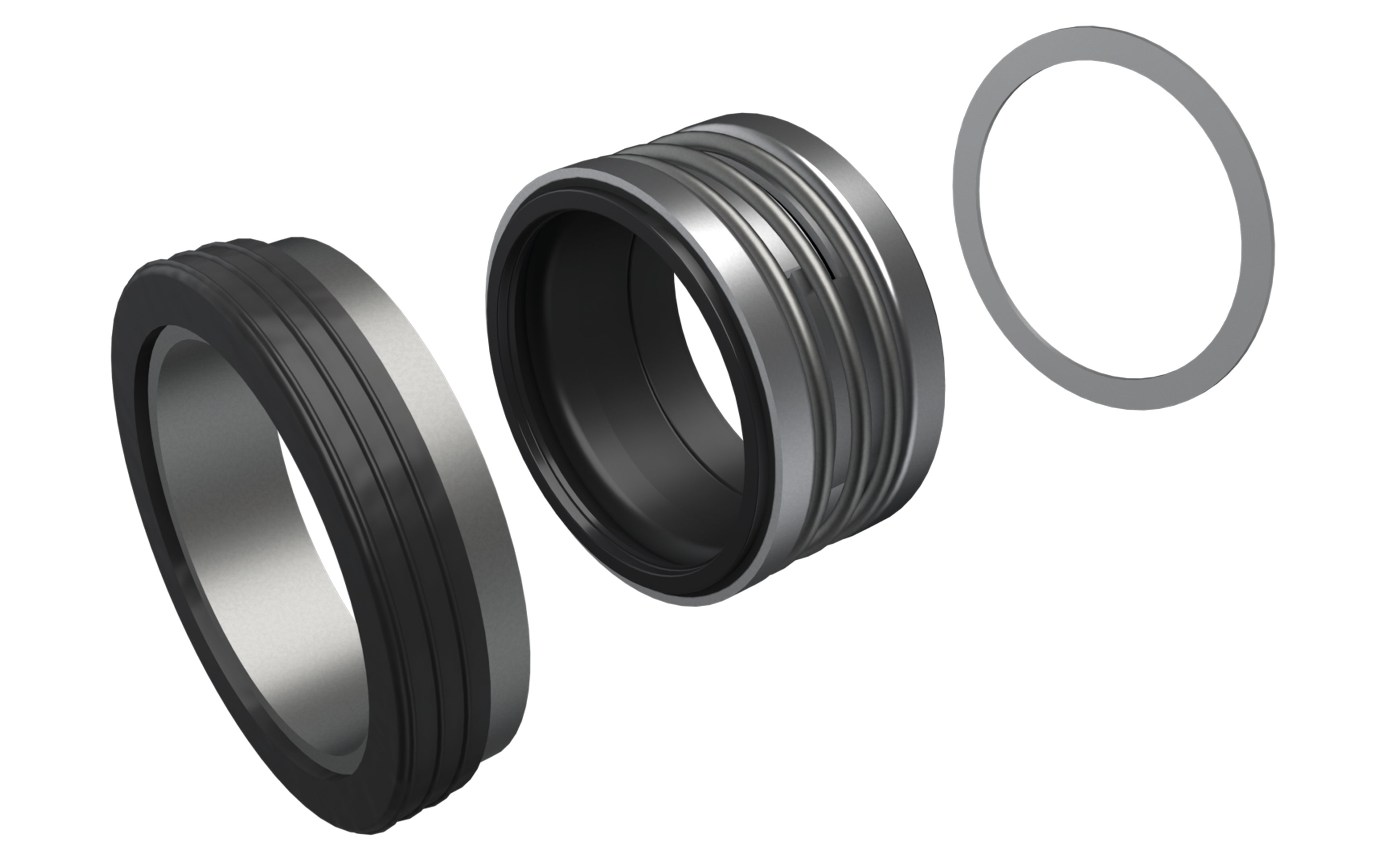

Mechanical shaft seal
Drive end
Item no.: 1634851
Mechanical shaft seal
Non-drive end
Item no.: 1634851

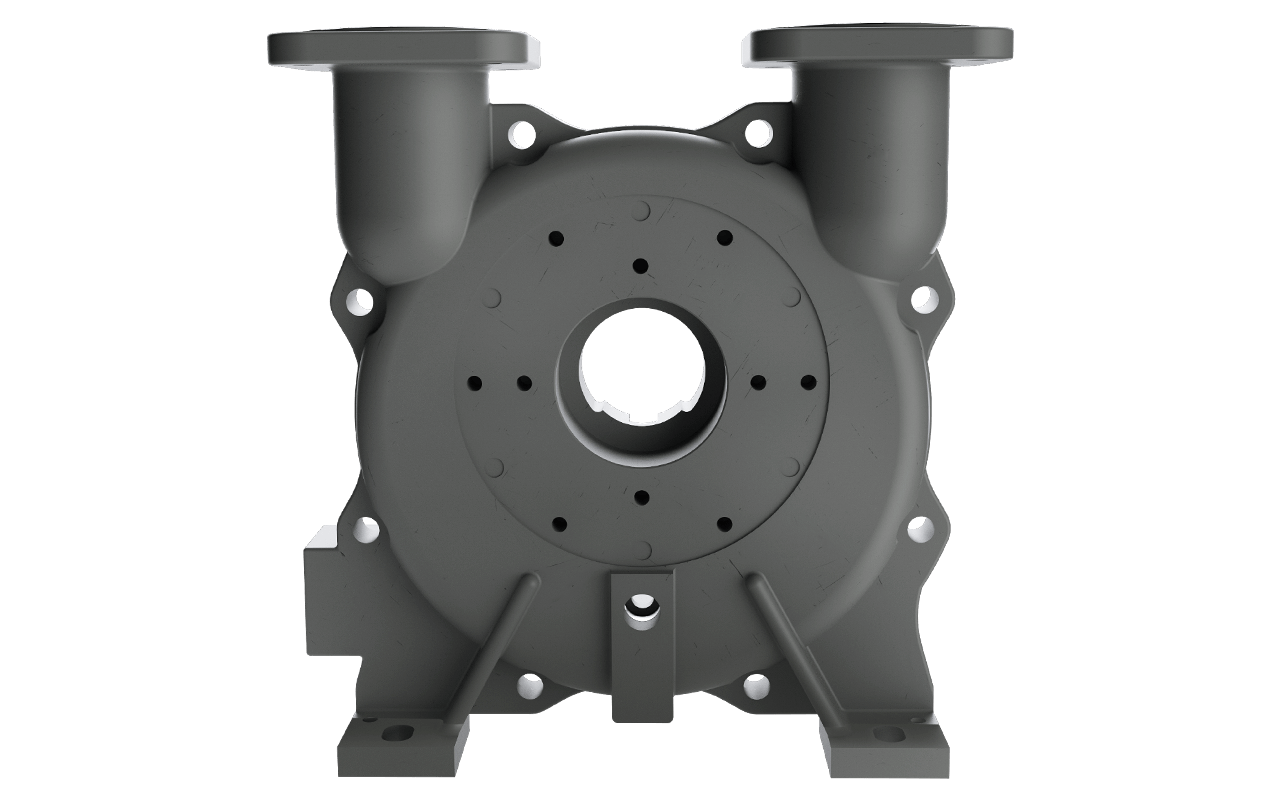

Pump house
Drive end
Item no.: 1658025
Pump house
Non-drive end
Item no.: 1658003

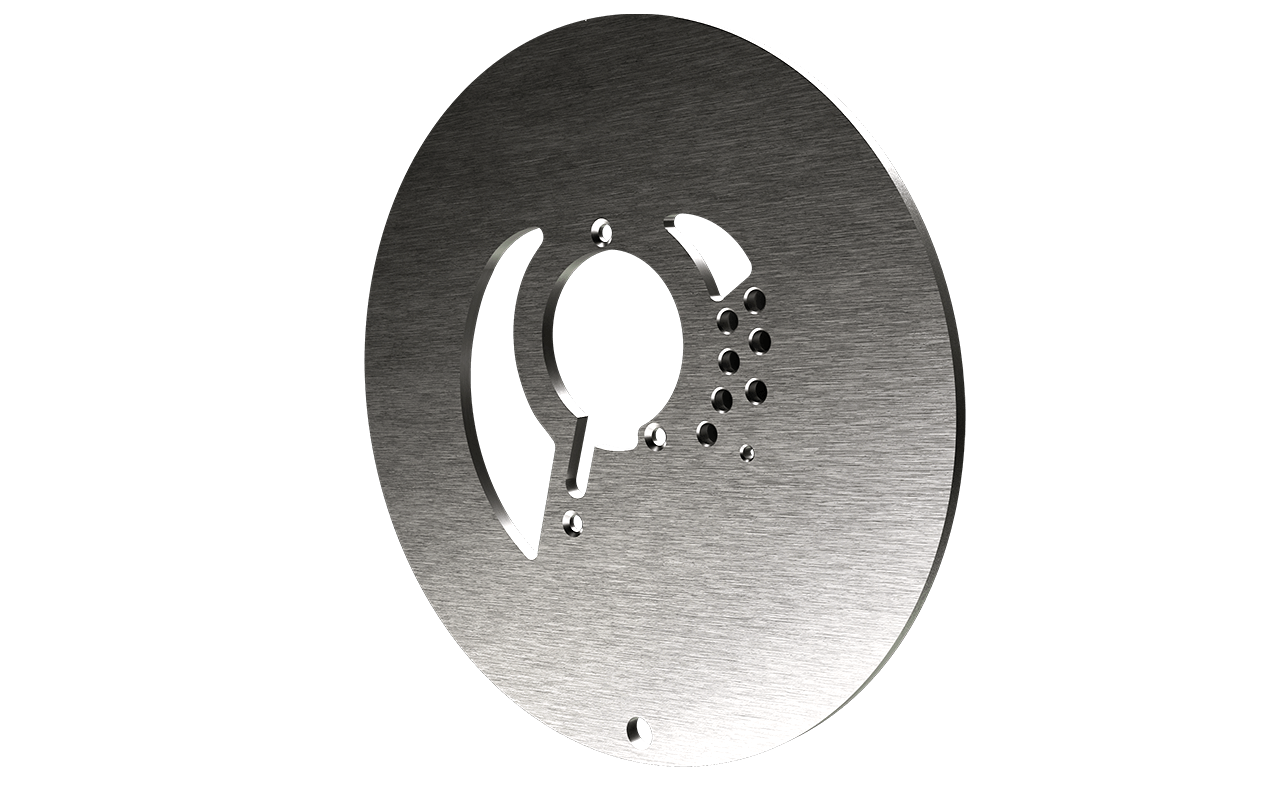

Flow plate
Drive end
Item no.: 1658021
Flow plate
Non-drive end
Item no.: 1658021

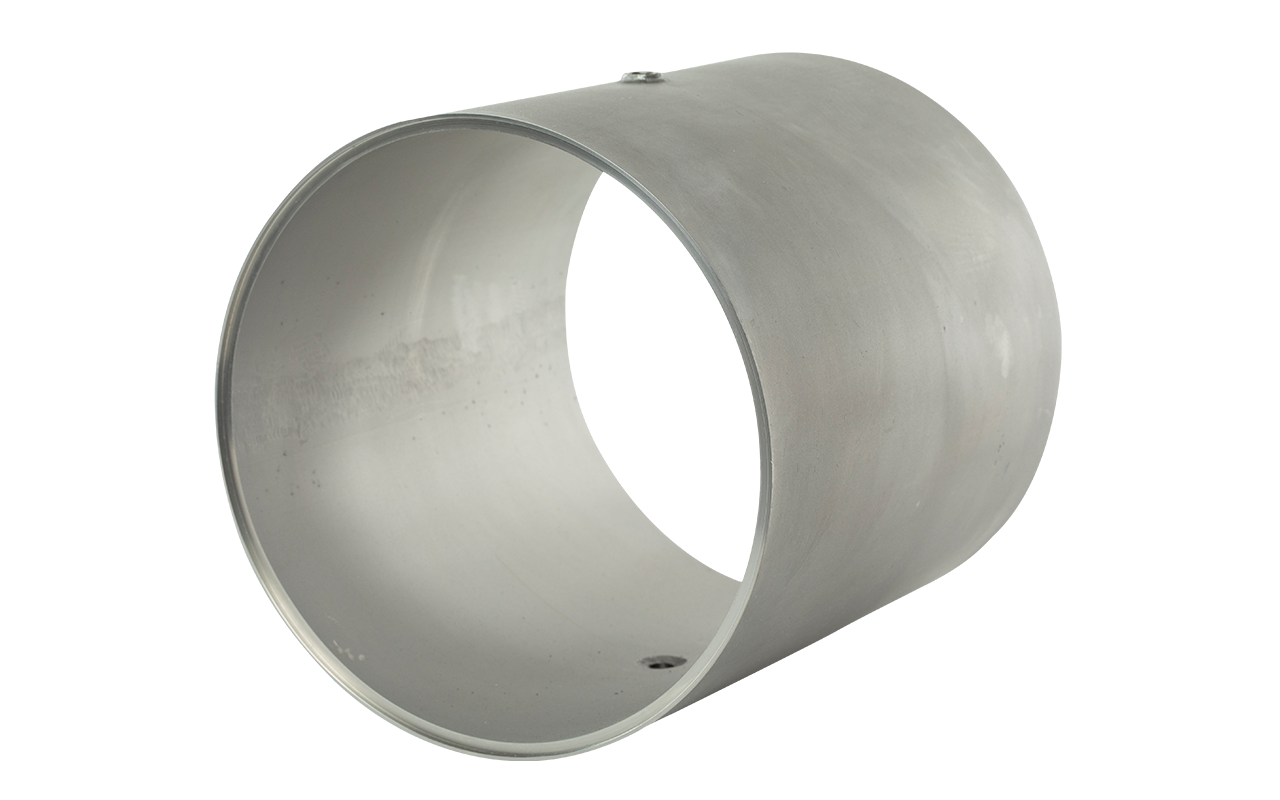

Shell
Stainless steel
Item no.: 1658010

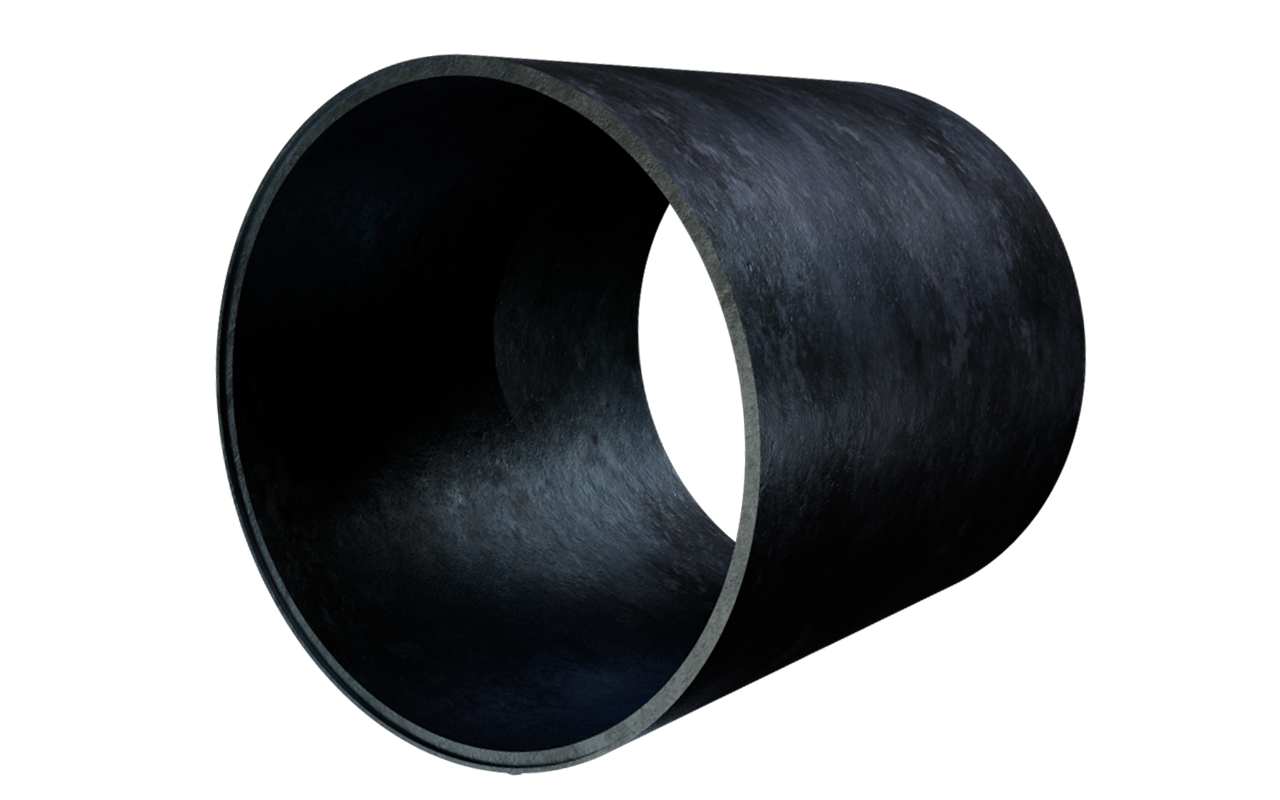

Shell
Cast iron
Item no.: 1658012
使用正确的组件完善您的真空系统
可靠性
专为恶劣的海水应用而设计
Ocean Master 2.0 凭借数十年的应用专业知识
可承受恶劣和腐蚀性的海水环境
在耐用性、坚固性以及服务友好性、易于安装和操作方面脱颖而出
